JMeter Tutorial: Set up and Installation

Last updated: Feb 25, 2024 11:08 am
By Meenakshi Agarwal
Share
8 Min Read
JMeter Tutorial - Download and Installation Guide for Load Testing
JMeter Tutorial - Download and Installation Guide for Load Testing.
SHARE

Welcome to this quick JMeter tutorial for basic setup and installation. In this tutorial, we’ll walk you through the required steps to prepare it for load testing.

Contents
IntroductionJMeter Tutorial – Run Java SetupDownload JMeter SetupInstall JMeter SetupStart JMeter for Load TestingRun JMeter in desktop (GUI) modeStart JMeter in service modeLaunch JMeter in console modeInstall JMeter on Ubuntu, Mac OS X, and CentOSInstall JMeter on Ubuntu-14.04/15Install JMeter on Mac OS XInstall JMeter on CentOS

Mostly, we use JMeter for Performance testing. However, it can be used with Selenium for carrying out automating load testing tasks.

Introduction

JMeter is a core Java application that can run on any platform that supports Java. Also, if you would ask for a load testing tool from any seasoned tester, he would recommend JMeter.

It supports a number of operating systems where you can run JMeter to execute the load tests.

Check out the below matrix which lists down the commonly used platforms/OS where you can set up JMeter for load testing tasks.

JMeter VersionJVM/JDK
Version
Supported
Platform/OS
JMeter 3.0Java 7+Windows 8.x (x86_64), Windows 7 (x86_64), Mac OS 10.9.x (x86_64), Ubuntu 15.x (x86_64)
JMeter 2.12Java 6/7Windows 8.x (x86_64), Windows 7 (x86_64), Mac OS 10.9.x (x86_64), Ubuntu 14.x (x86_64)
JMeter 2.9Java 6/7Windows XP (i386), Windows 7 (x86_64), Mac OS 10.9.x (x86_64), Ubuntu 14.x (x86_64)
JMeter Version History

For today’s JMeter tutorial, we’ll run the JMeter setup on a Windows 7 machine.

Here are some quick links to navigate you through the JMeter tutorial.

JMeter Tutorial – Run Java Setup

Since JMeter is a desktop-based Java app, it needs a compatible JVM to run. For example, we are going to install JMeter 3.0 on a Windows 7 system. So it’ll require Java 7+.

For a note, if you are planning to build some project, then download the JDK package only. Next, you should check the installed Java version. So open the terminal and run the following command.

C:\Users\jmeter>java -version
java version "1.8.0_92"
Java(TM) SE Runtime Environment (build 1.8.0_92-b14)
Java HotSpot(TM) 64-Bit Server VM (build 25.92-b14, mixed mode)

Most probably the above command would succeed, but if it fails then try re-installing Java again.

Download JMeter Setup

The most stable version to date is JMeter 3.0. So to download it, click on the below link.

Download JMeter

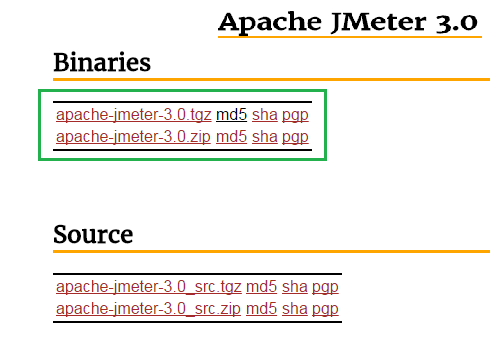

JMeter Tutorial Download JMeter Setup
JMeter Tutorial – Download JMeter Setup

Install JMeter Setup

It’s reasonably easy to install JMeter. You just need to extract the zip file downloaded in the previous step. After unpacking the zip file, you will see a tree layout something like the one shown in the below picture.

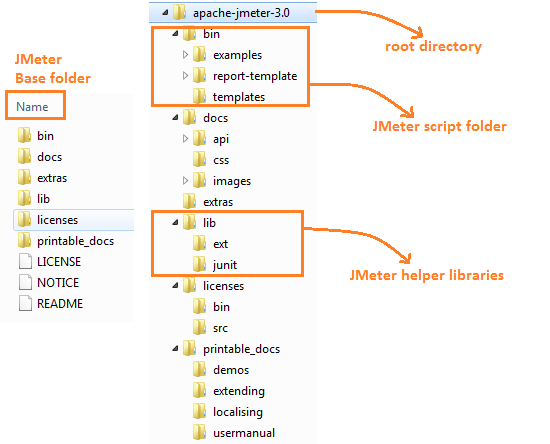

JMeter File Structure
JMeter Tutorial JMeter File Structure.

Here is a brief checklist of folders that you’ll see after extracting the JMeter zip file.

JMeter FolderDescription
<bin>Holds the script file to launch JMeter.
<docs>Offline reference docs.
<extras>Ant script extensions.
<lib>Holds helper Jar libs for JMeter.
<lib/ext>Contains JMeter protocol libs.
<lib/junit>JUnit lib for JMeter.
<printable_docs> Contains ready to print docs.
JMeter Folder Details

Start JMeter for Load Testing

Following are three ways to launch JMeter.

  • Run JMeter in desktop mode.
  • Start JMeter in service mode.
  • Launch JMeter in console mode.

Run JMeter in desktop (GUI) mode

Go to the <bin> folder and run the <jmeter.bat> script.

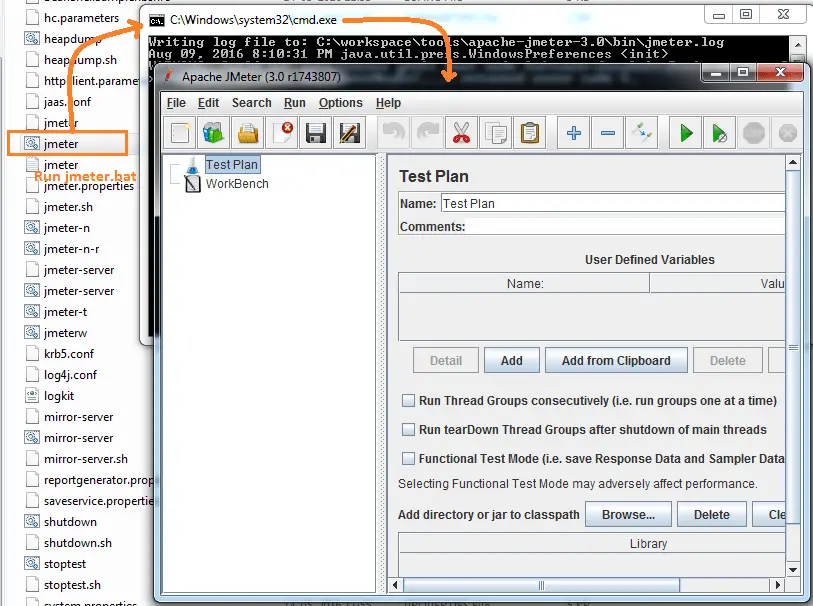

Run JMeter in GUI Mode
JMeter Tutorial Run JMeter in GUI Mode.

Start JMeter in service mode

For running tests on multiple nodes, you can start JMeter in service or server mode. So one machine works as the master and the other nodes as the slaves. In this manner, you can generate load from multiple JMeter clients.

JMeter provides a <jmeter-server.bat> script under the <bin> folder to start the server.

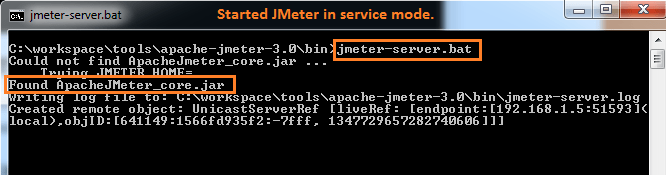

Start Service Mode
JMeter Tutorial Start JMeter in Service Mode.

Launch JMeter in console mode

When you run JMeter in desktop or UI mode, it consumes a lot of the system’s memory. But there is a way to cut down the memory utilization, i.e. by running the JMeter in console mode.

The JMeter tool takes multiple arguments from the command line. Please follow the below syntax to launch JMeter from the console.

jmeter -n -t <loadTest.jmx> -l <log.jtl> -H <127.0.0.1> -P 8080

You can also run the JMeter in the same manner as we did in the above example. But make sure you have the file created from the JMeter in GUI mode.

Otherwise, the above command will return the <could not open loadTest.jmx> error.

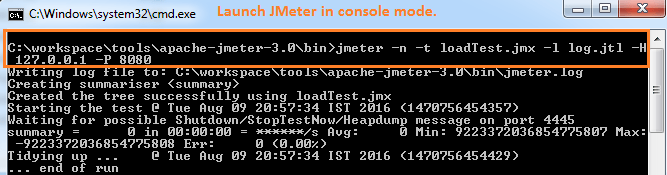

Launch the Console Mode
JMeter Tutorial Launch JMeter in Console Mode.

Install JMeter on Ubuntu, Mac OS X, and CentOS

In this part of the JMeter tutorial, we’ll give you basic commands to install JMeter on Ubuntu (e.g. 14.04/15), Mac OS X, and CentOS. But please ensure that you’ve Java installed on these systems prior to installing the JMeter.

Install JMeter on Ubuntu-14.04/15

Please note that you need to run the JMeter installation with the root user. So add <sudo> before running the <apt-get> command.

$ sudo apt-get install jmeter

Install JMeter on Mac OS X

To install JMeter on Mac, run the below command.

brew install jmeter

To install JMeter along with plugins, use the following command.

brew install jmeter --with-plugins

Install JMeter on CentOS

$ sudo yum install jmeter

Final Word – JMeter Tutorial to Set up Load Testing

We tried our best attempt to present this JMeter tutorial in a simplified format. Hopefully, it could also be helpful for you in starting with the JMeter for load testing.

We’re always open to feedback, so please don’t hesitate to share your thoughts with us using the contact page. We appreciate your input, and we’ll use it to improve our blog and make it even more informative and helpful for our readers.

In the meantime, we encourage you to continue exploring our blog for more in-depth information on a variety of topics.

Happy learning,

TechBeamers
