The Best Top-Down Approach Guide for C

In this tutorial, we will explore the top-down approach in the context of C programming. We will cover the key concepts, benefits of this approach, and how to implement it. Additionally, we will provide unique code examples to illustrate the principles of the top-down approach.

Understand the top-down approach

The top-down approach to programming in C has a long history, dating back to the early days of the language. It was first popularized by Niklaus Wirth, the creator of the Pascal language. Wirth argued that the top-down approach was the most efficient and effective way to develop complex software.

What is a top-down approach in C?

A top-down approach is a logical way of programming that first divides a large problem into smaller, more manageable pieces. Subsequently, It ensures that each piece has a desirable solution. Finally, all solutions form together to solve the original problem. Given these points, the coding fraternity often calls this approach by the name “Subproblem Reduction”.

Try This: Java Programming Practice Test

Pros and Cons of the top-down approach

This approach is quite useful in some cases but also lacks in a few. However, let’s see how the pros precede the cons.

Advantages

The top-down approach has several advantages, including:

• It makes complex problems easier to solve by breaking them down into smaller, more manageable pieces.
• It makes programs more modular and reusable by separating the sub-problems and solving them independently of each other.
• It makes programs easier to debug by ensuring the sub-problems go through testing individually.
• It makes programs easier to maintain, as changes to one sub-problem are less likely to affect other parts of the program.

Disadvantages

• One disadvantage of the top-down approach is that it can be difficult to design an efficient solution to a problem without first understanding the details of the sub-problems.
• Another disadvantage is that the top-down approach can lead to redundancy if the same code appears in multiple sub-problems.

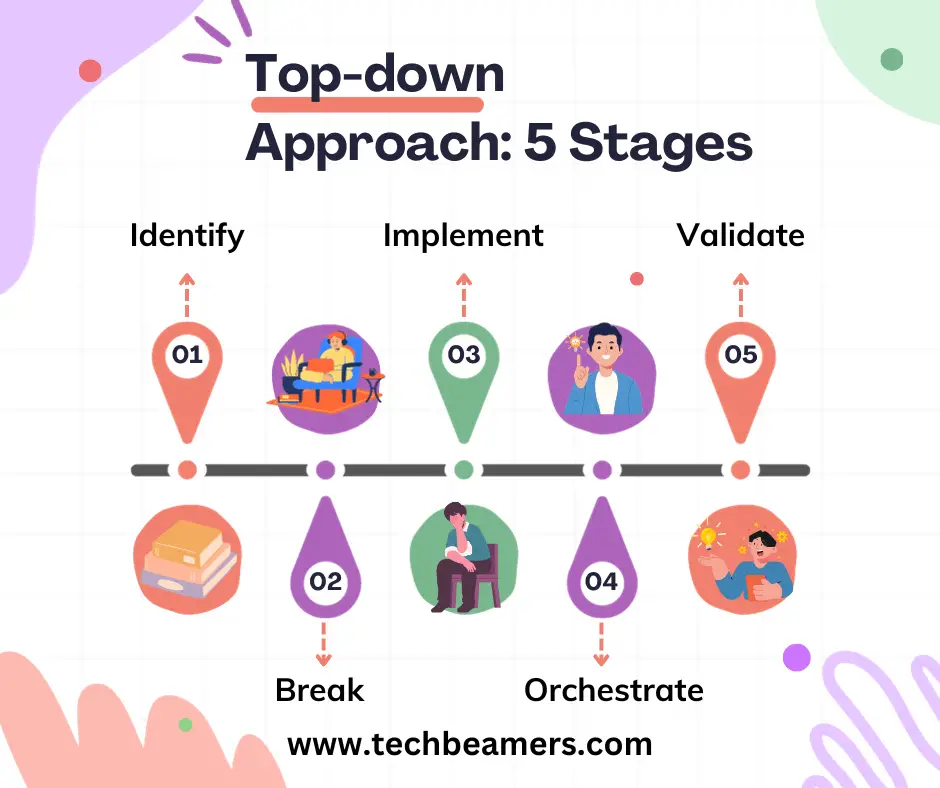

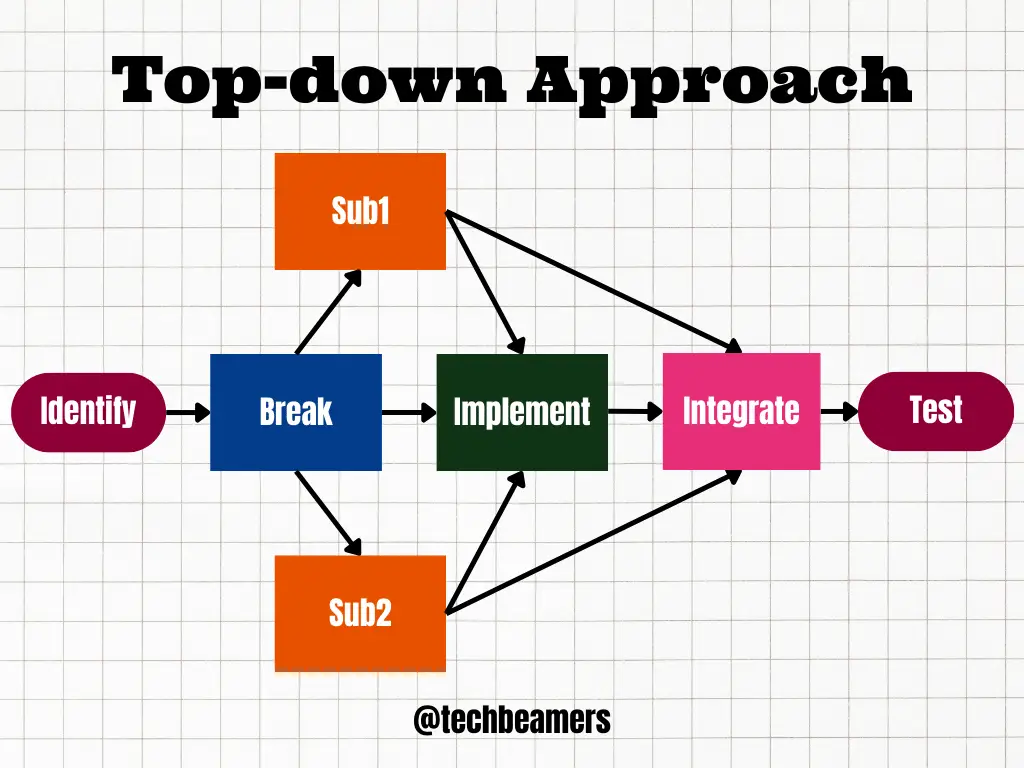

How to use the top-down approach in C

To use the top-down approach in C, you can follow these steps:

1. Identify the problem. What are the inputs and outputs of the program? What is the desired functionality?
2. Break the problem down into sub-problems. What are the major tasks that the program needs to perform? Can we divide these tasks further into smaller sub-tasks?
3. Implement each sub-problem in a separate function. This will make the program more modular and reusable.
4. Call the sub-functions from the main function. The main function should simply orchestrate the execution of the sub-functions.
5. Test and debug the program. Make sure that each sub-problem gets a correct solution, and that the overall program works as expected.

Test Yourself: Best Python Programming Online Test

Example code snippet

The following code snippet shows a simple example of the top-down approach in C:

C code:

#include <stdio.h>

// Function to find the factorial of a number
int fact(int n) {
    if (n == 0) return 1;
    return n * fact(n - 1);
}

// Function to find the square of a number
int sqr(int x) {
    return x * x;
}

// Function to find the cube of a number
int cube(int x) {
    return x * x * x;
}

// Main function
int main() {
    int num;

    // Get input from the user
    printf("Enter a number: ");
    scanf("%d", &num);

    // Find the factorial, square, and cube of the number
    int fact_result = fact(num);
    int sqr_result = sqr(num);
    int cube_result = cube(num);

    // Display the results to the user
    printf("Factorial: %d\n", fact_result);
    printf("Square: %d\n", sqr_result);
    printf("Cube: %d\n", cube_result);

    return 0;
}

The above C code follows the top-down approach:

• It divides the logic into smaller tasks (finding the square, factorial, and cube of a number and printing the result).
• Each task has a separate function to work.
• The data flows through the functions in a logical and precise manner.

Develop a C program using the top-down approach

When creating a top-down solution to a problem, it is important to consider the following factors:

• Modularity: The solution should boil down into modules, each of which performs a specific task. This will make the code more reusable and easier to maintain.
• Abstraction: The solution should hide the implementation details of each module from the other modules. This will make the code more concise and easier to understand.
• Data flow: The solution should use a design that implements a logical and efficient data flow across the modules.

To demonstrate the concept of a top-down approach, let’s code the following problem in C.

Problem statement

Problem: To develop a system to store and manage student information, including student ID, name, grades, and average grade. The system should be able to print the details of a student, find the highest grade of a student, and calculate the average grade of a student.

Solution: We’ll use the top-down approach to solve this problem. Firstly, the process will start by dividing the problem into sub-problems, such as:

• Designing a data structure to store student information
• Implementing functions to add, delete, and update student information
• Implementing functions to print the details of a student, find the highest grade of a student, and calculate the average grade of a student
• Developing a user interface to interact with the system

Source code of the C program

The following code snippet shows a more complex example of the top-down approach in C:

C code:

#include <stdio.h>

// Struct to keep student info
typedef struct {
  int roll_number;
  char name[50];
  int marks[3];
  float average;
} student;

// Function to find the avg marks of a student
float find_avg(student *std) {
  float avg = 0.0;
  for (int ix = 0; ix < 3; ix++) {
    avg += std->marks[ix];
  }

  return avg / 3.0;
}

// Function to print the details of a student
void print_std_info(student *std) {
  printf("Roll number: %d\n", std->roll_number);
  printf("Name: %s\n", std->name);
  printf("Marks: %d, %d, %d\n", std->marks[0], std->marks[1], std->marks[2]);
  printf("Average: %f\n", std->average);
}

// Main function
int main() {
  student std1;

  // Get input from the user
  printf("Enter the student's roll number: ");
  scanf("%d", &std1.roll_number);

  printf("Enter the student's name: ");
  scanf("%s", std1.name);

  printf("Enter the student's marks: ");
  for (int i = 0; i < 3; i++) {
    scanf("%d", &std1.marks[i]);
  }

  // Calculate the student's average marks
  std1.average = find_avg(&std1);

  // Print the student's details
  print_std_info(&std1);

  return 0;
}

This code snippet is a bit more complex than the previous example. However, it illustrates the key concepts of the top-down approach in C:

• The problem (Find out the average marks of a student) is divided into smaller modules (Get the sum of the marks and divide it by 3).
• Each module performs a specific task and hides its implementation details from the other modules.
• The data flow should be logical and efficient across the modules.

Tips – How to quickly adapt the top-down approach

Here are some tips for using the top-down approach effectively:

• Start by creating a high-level design of the solution. This will help you to understand the overall structure of the program and the relationships between the different modules.
• Use pseudocode to describe the functionality of each module. This will help you to refine your design and identify any potential problems.
• Implement the modules one at a time. This will make it easier to test and debug the program.
• Use unit testing to test each module individually. This will help you to identify and fix any bugs early on.
• Use integration testing to test the modules together. This will help you to identify any bugs that arise when the modules are integrated.

Check This: SQL Programming Test with 20+ Queries

Comparison of different approaches

The following table compares the top-down and bottom-up approaches:

Differences in a 3-D view

Let’s look at the differences in a 3-D view.

Which approach is the most suitable?

The most suitable approach for a particular problem depends on the complexity of the problem and the experience of the programmer. For complex problems, the top-down approach is generally preferred, as it makes the problem easier to solve and maintain. For simple problems, the bottom-up approach may be more efficient, as it allows the programmer to start working on the solution immediately.

Conclusion: Top-down approach in C

The top-down approach is a powerful method that can be used to solve complex problems. It deems fit for problems that can be naturally divided into smaller sub-problems. By using the top-down approach, programmers can write more modular, reusable, and extensible code.

In conclusion, the top-down approach in C programming is an excellent choice for projects and a desire for maintainable, modular code. By following the steps outlined in this tutorial, you can develop well-structured C programs that are easy to manage and extend.
